Thetford Topline 111 Hob and Sink Conversion Kit 1

With all you need for running water and gas cooking

This conversion kit is perfect for smaller campervans, giving you a compact and reliable water and gas set-up for your vehicle. This kit includes two jerry cans for fresh and waste water, as well as a tap, 12v pump and piping to complete the water system. A gas regulator and gas hose lets you connect your hobs to a gas cylinder safely, too.

Includes Thetford’s modern Topline hob and sink

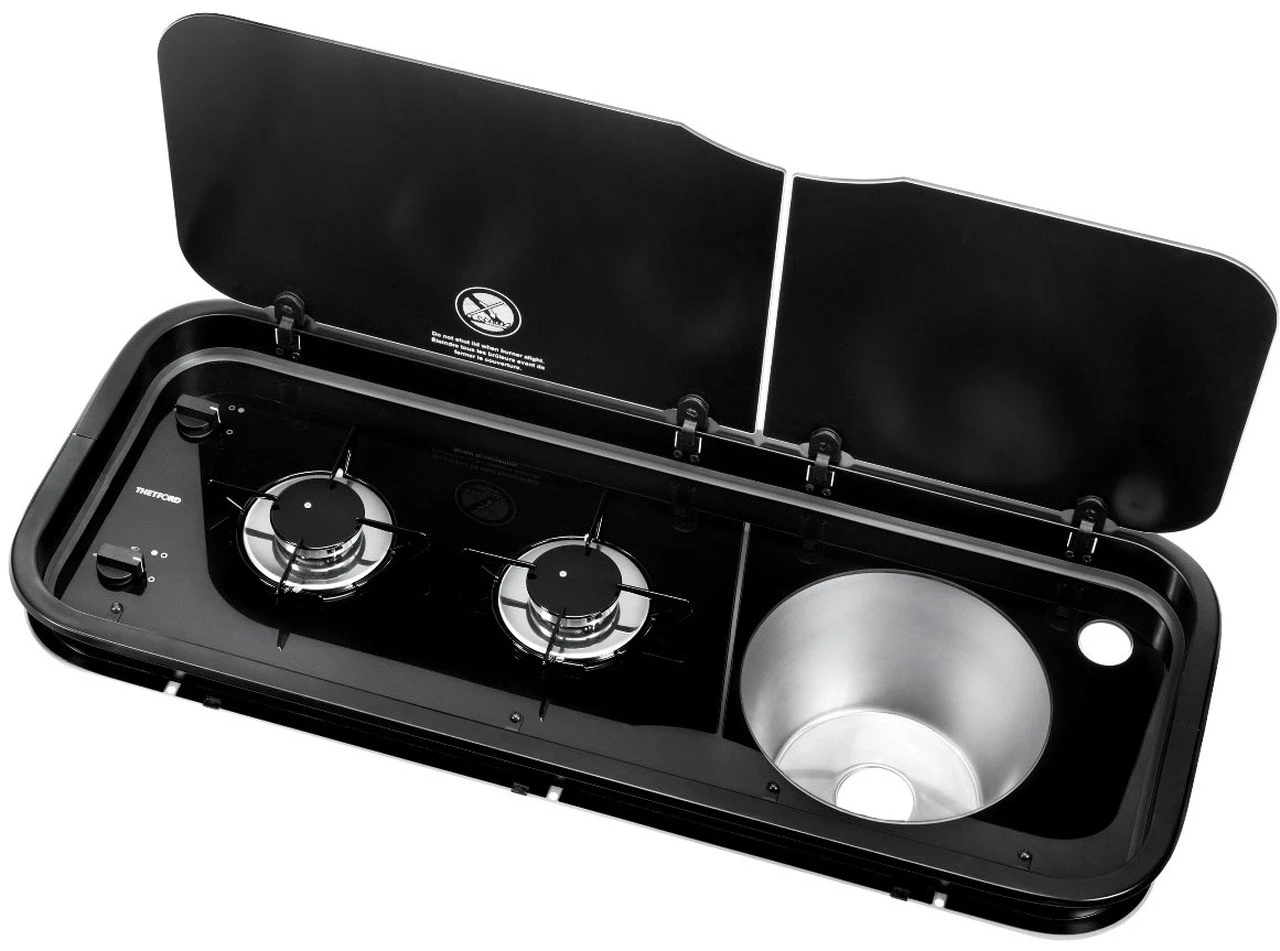

This kit uses Thetford’s Topline 111 hob, which includes 12v ignition and a sleek glass lid to make campervan or motorhome feel complete. Two 1.5kW gas burners give you ample power for your cooking, and matt nickel control knobs let you adjust the gas output.

Customize to match your van

Thetford Topline 111 conversion kit 1 is easily customisable for all your needs. Please see below for the full contents of what is supplied with each regulator option.

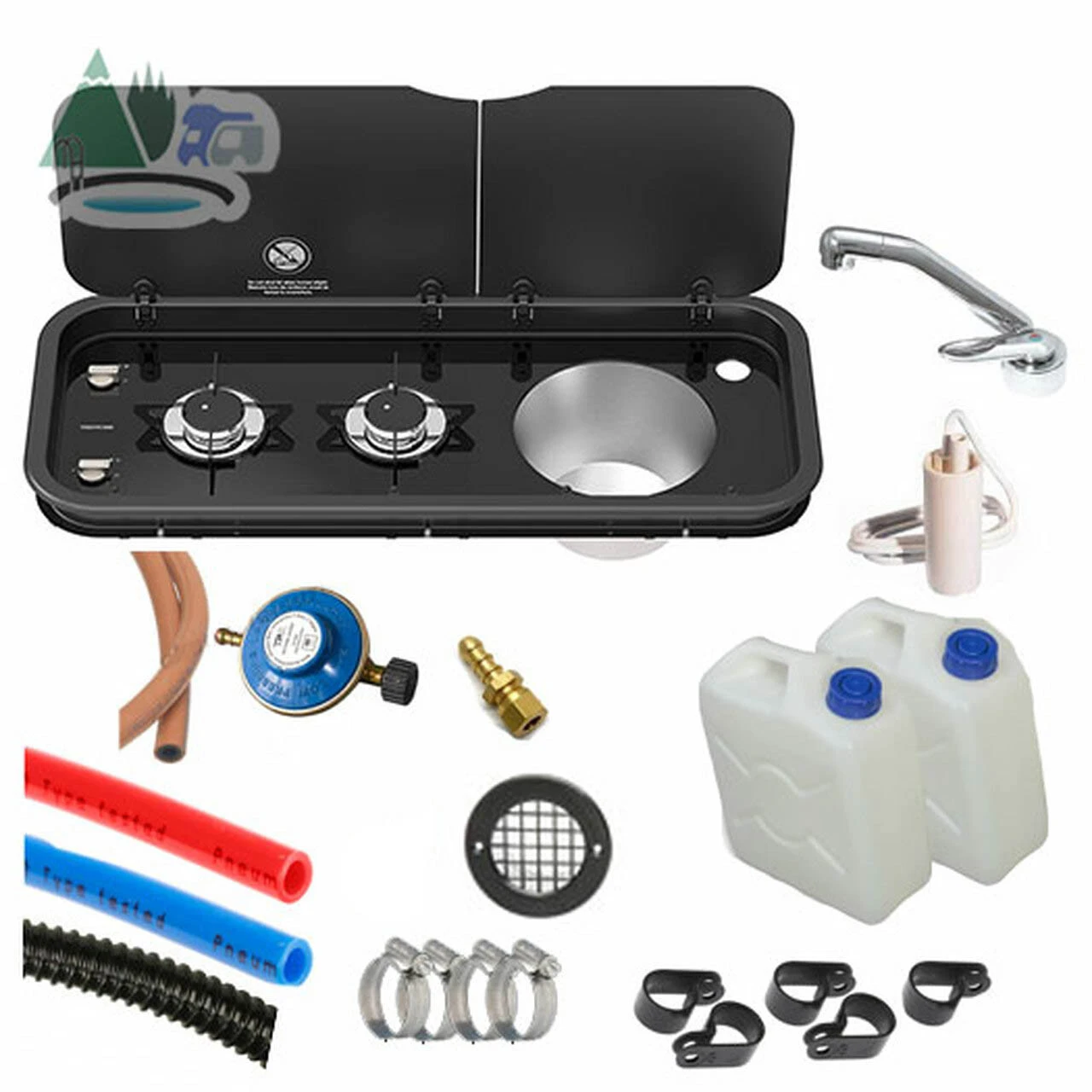

The Thetford Topline 111 Kit 1 contains:

•    Thetford Topline 111 sink and hob combi unit
•    Reich Samba micro switch Cold Tap or Hot & Cold Tap
•    Whale Submersible Pump
•    2 x 9.5L Jerry Cans

•    2mtr x 10mm Cold Pipe
•    2mtr x 20mm Waste Pipe
•    2mtr x 10mm Hot Pipe (Only available when mixer tap selected)
•    1 x 75mm Floor Vent

•    Pack of x 5 P Clips
•    4 x Jubilee Clips
•    1x 8mm Straight Compression Coupling

Camping gaz option includes:

•    1x Camping Gaz Regulator
•    1x 8mm Compression Nozzle
•    1mtr LPG Gas Hose

Bulkhead option includes:

•    1 x 8mm Bulkhead Regulator
•    1 x 45cm Pigtail
•    1 x 8mm 90° Compression Elbow
•    1 x Gaz Adapter
•    2mtr x 8mm Copper Pipe

Thetford 111 User Manual:

Thetford 111 Installation Manual:

Technical Specifications:

Combi External Dimensions:

H195 x W900 x D370 mm

Combi Worktop Cut-Out:

W358 x D888 mm

Combi Total Heat Output:

3.0 kW

Combi Gas hotplate burners output:

2 x 1.5 kW

Combi Bowl Depth:

140 mm

Combi Clearance under hob:

100 mm from worktop face to bottom of burners

Combi Fixing:

Clamps

Combi Hob Top Material:

Toughened Glass

Combi Pan support:

2 pieces

Combi Spark Ignition:

Yes, 12v DC

Combi Weight:

11 kg

Combi Tap Hole:

40 mm Diameter
