PV Logic 300w Motorhome Solar Panel Kit with 30 amp MPPT Controller

The perfect solar energy solution for people with high power necessities, the PV Logic 300w Solar Panel Kit provides maximum power from the smallest possible module size making it ideal for boats, motorhomes and caravans with space or weight restrictions.

The PV Logic 300w Solar Panel Kit is a tough, durable and efficient energy solution suitable for powering an assortment of consumption devices with the added reliability of being suitable for outdoor use as well as water resistant.

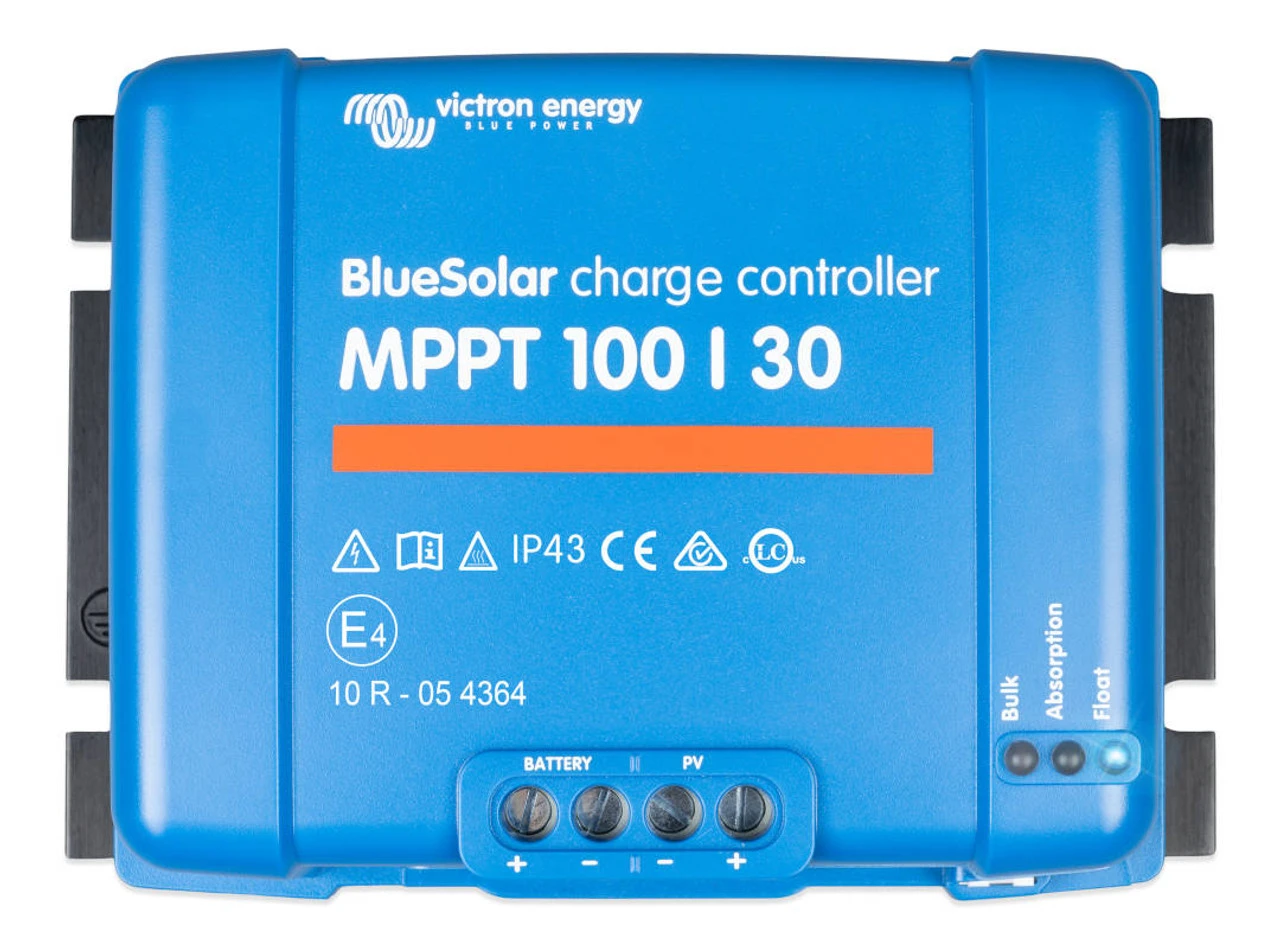

30 amp MPPT Charge Controller included

The PV Logic 300w Solar Panel Kit also comes supplied with a 30 amp MPPT (Maximum power point tracking) Charge Controller which increases panel efficiency, protects the battery from being overcharged and also prevents reverse current drain.

What is an MPPT Controller?

An MPPT, or maximum power point tracker, is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank in your campervan, caravan or motorhome.

To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

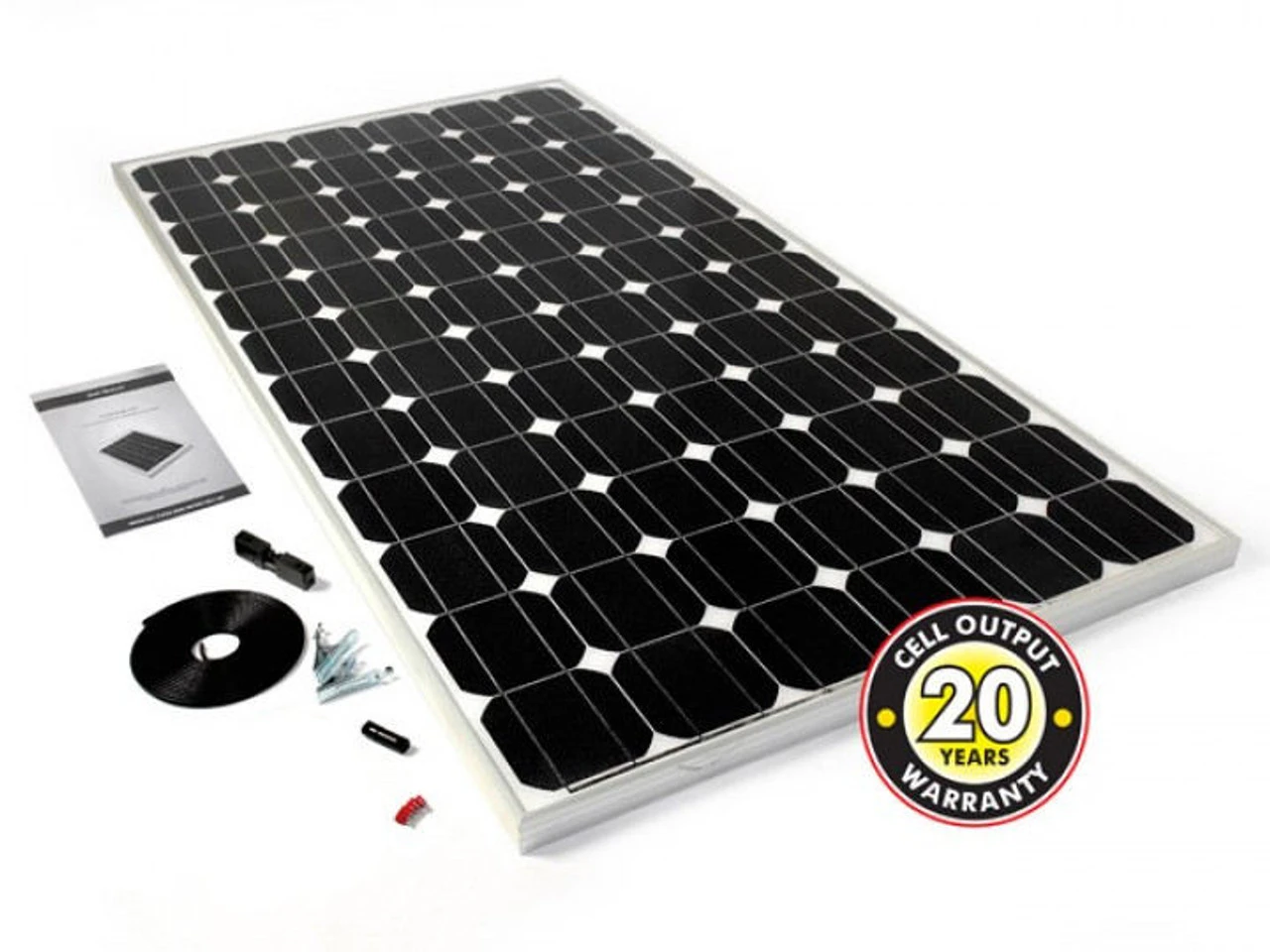

PV Logic 300w Solar Panel Kit contents

• 2 x STP150 – 150w solar panel
• 1 x 5m Cable
• 1 x Fuse
• 1 x In Line Connector
• 2 x Crocodile Clips
• 6 x Ring Terminals
• 1 x Instruction Sheet
• 1 x Sealant
• 1 x 30 amp MPPT Charge controller

Dimensions of panels: L 1490mm x W 670mm x D 35mm

Mounting brackets FKA08  included, Other styles of fitting kit are available at extra cost.

What output can I expect?

The PV logic 300 watt solar panel kit will, at its nominal out, be producing approximately 10.5 amps per hour to feed into your Leisure Batteries

PV Logic 300w MPPT Solar Panel Kit features

• High efficiency crystalline cell for “all weather” charging
• Perfect for TV operation and for permanent fitting
• Water resistant, robust construction for outdoor use.

---

Technical Specifications:

Power:

300 watts

Peak Output:

15.7a @ 19v DC (Appx)

Dimensions:

1450 x 670 x 40mm

Weight:

11kg per panel
